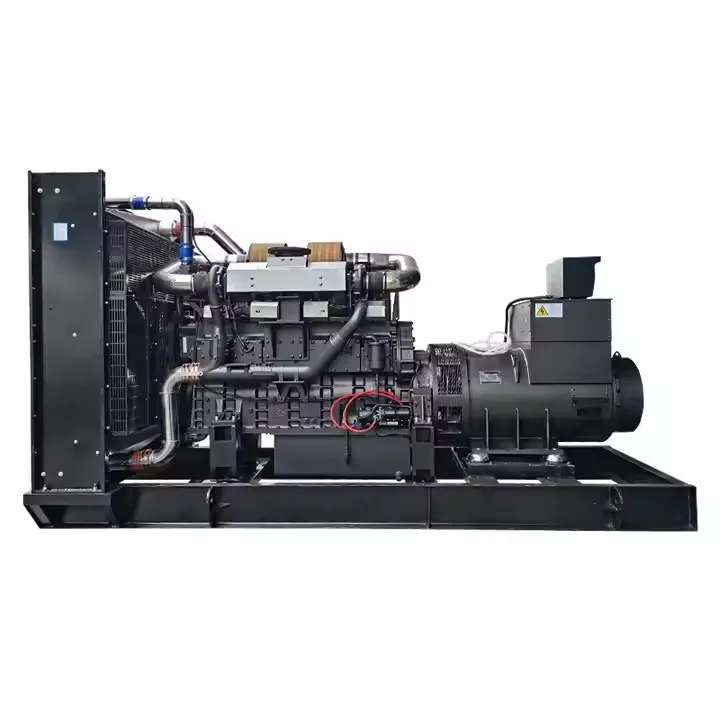

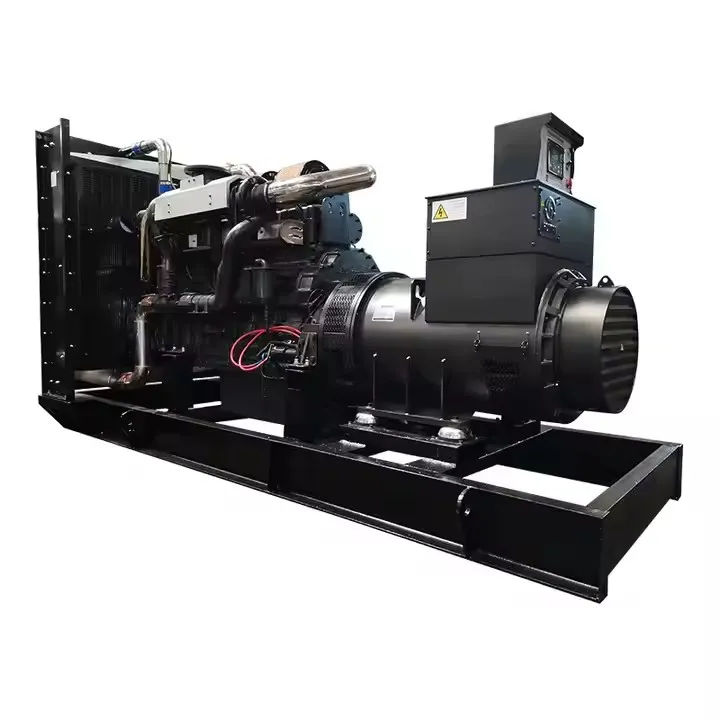

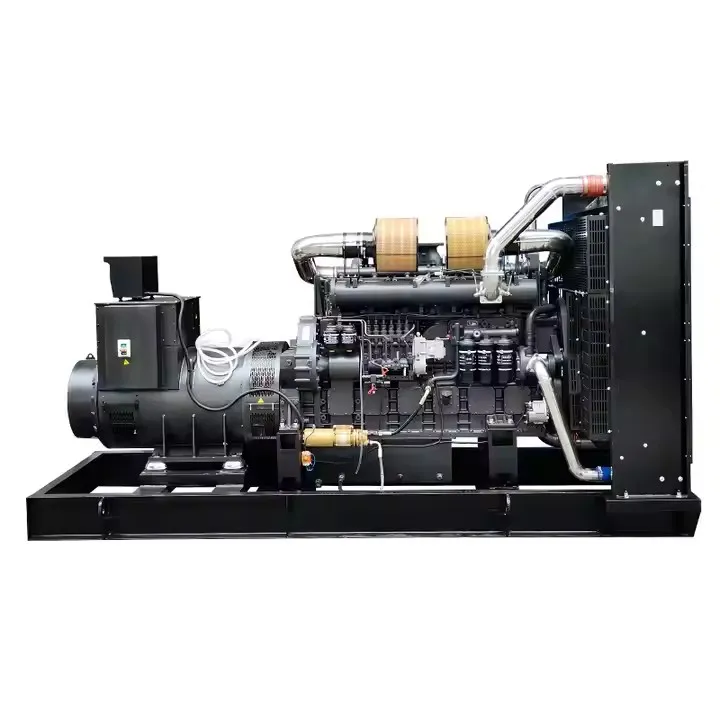

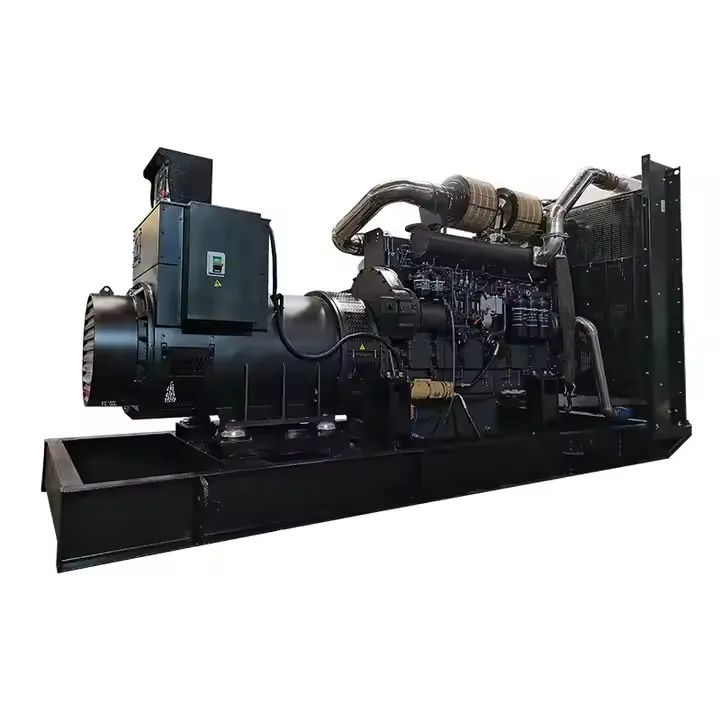

750kW 937.5kVA Shangchai Diesel Generator Set

Diesel Generator Set Data

Model: WP-750GF

Prime power: 750KW/937.5KVA

Rated current: 1350A

Rated frequency: 50Hz

Power factor: 0.8lag

Rated voltage: 230/400V

Connection way: 3 phase 4 wire

Start Mode: Electric start

CONTACT US FOR MORE INFORMATION

Please complete the contact request on the right so we can ensure that we can deliver all the information you are looking for quickly. You will be contacted by the appropriate office in your area.

Support Hotline： 8613805366551

Send Inquiry Live Chat

Product Details
Why Choose Us
FAQs
Packing & Delivery

Diesel Generator Set Data
Manufacturer:	Winpower Generator Set Manufacturing Co.,Ltd Co.,Ltd
Set Type:	WP-750GF
Prime Power:	750KW/937.5KVA
Rated Current:	1350（A）
Rated Frequency:	50（Hz）
Start-up time:	5～6（s）
Power Factor:	0.8（Lag）
Rated Voltage:	400/230（V）
Standard Features
Engine: Shangchai 6WTAA35-G32 Radiator 40℃ Fans are driven by belt, with safety guard 24V charge alternator Dry type air filter, fuel filter, oil filter Alternator: single bearing alternator, IP22-IP23, insulation class H/H Main line circuit breaker Standard control panel Absorber Muffler Factory test report, User manual etc.
Diesel Engine Data
Manufacturer:		Shanghai Diesel Engine Co.,Ltd
Model:		6WTAA35-G32
Prime/Standby Power:		818KW/900KW
Rated Speed:		1500（r/min）
Cycle:		4 stroke
Engine type		6 cylinders, in line, wet liner, 4 valves, direct injection
Displacement:		35.1L
Bore and Stroke:		180*215（mm）
Compression Ratio:		16:1
Governor Type:		Electronic
Start battery voltage:		24V DC
Air Intake System
Air Intake System:		Turbocharged, intercooled
Injection timing		22°BTDC
Exhaust System
Max Allowable Back Pressure:		10kpa
Fuel System
Fuel System:		Direct injection
100%( Prime Power) Load:		186.4L/h
75%（Prime Power( Load		138.1L/h
50%( Prime Power) Load:		92.6L/h
Oil System
Total Oil Capacity:		75-100L
Oil pump		Gear type driven by crankshaft
Cooling System
Cooling Way:		Fresh water forced circulation
Engine Coolant Capacity:		78L
Thermostat:		77-90℃
Cooling fan		Blower type, iron 1371mm diameter, 8 blades
Alternator Data
Manufacturer:		Stamford/ Siemens/ Marathon/ ENGGA / Leroy Somer
Excitation Mode:		Brushless and self- exciting
Number of phase and Access Act:		3-phase 4-wire
Connecting Type:		“Y” type connecting
Alternator Capacity:		1000KVA
Alternator Efficiencies:		95％
Overload:		（PRP）110% load can run 1h
Protection Level:		IP22-IP23
Insulation Class, Temperature Rise:		H/H
Telephone Influence Factor (TIF):		＜50
THF:		＜2%
Voltage Regulation, Steady State:		≤±1%
Altitude:		≤1000m
Genset Electrical Performance
Voltage Regulation:						≥±5%
Voltage Regulation, Stead State:						≤±1%
Sudden Voltage Warp (100% Sudden Reduce):						≤+25%
Sudden Voltage Warp (Sudden Increase):						≤-20%
Voltage Stable Time (100% Sudden Reduce):						≤6S
Voltage Stable Time (Sudden Increase):						≤6S
Frequency Regulation, Stead State:						≤5%
Frequency Waving:						≤1.5%
Sudden Frequency Warp (100% Sudden Reduce):						≤+12%
Sudden Frequency Warp (Sudden Increase):						≤-10%
Frequency Recovery Time(100%Sudden Reduce):						≤5S
Frequency Recovery Time(Sudden Increase):						≤5S
Options
Engine					Alternator
Heater					Anti Condensation Heater
Battery Charger					Permanent Magnet Generator（PMG）
Water Separator					Drop CT（For Paralleling）
Daily Fuel Tank
Fuel Level Sensor
Control System					Others
Remote Control Panel					Rainproof Type
Auto Transfer Switch (ATS)				Soundproof Type
Paralleling System				Trailer Type
Open Type
Overall Size			Weight
485018502200(mm)			6500(kg)
Soundproof Type
Overall Size			Weight
600026002800(mm)			10000(kg)

More technical information, please send inquiry to us.
