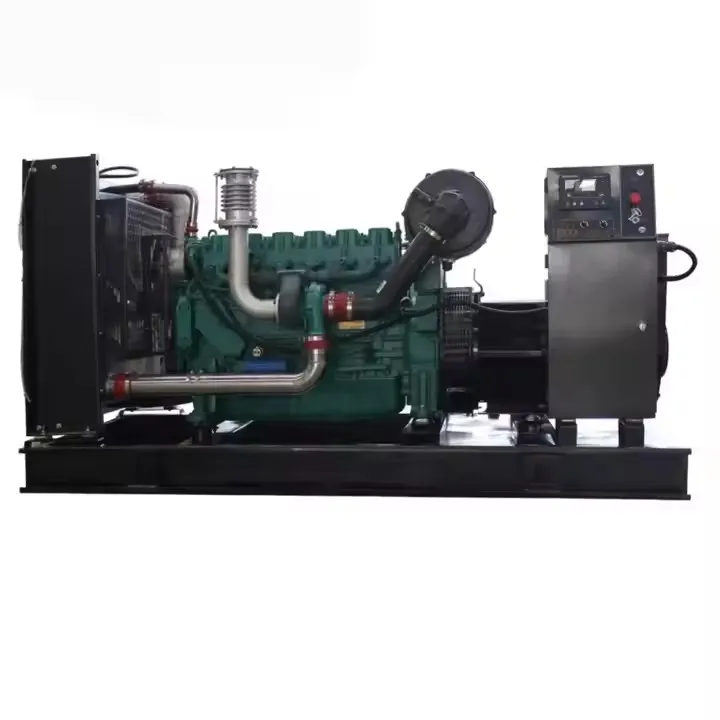

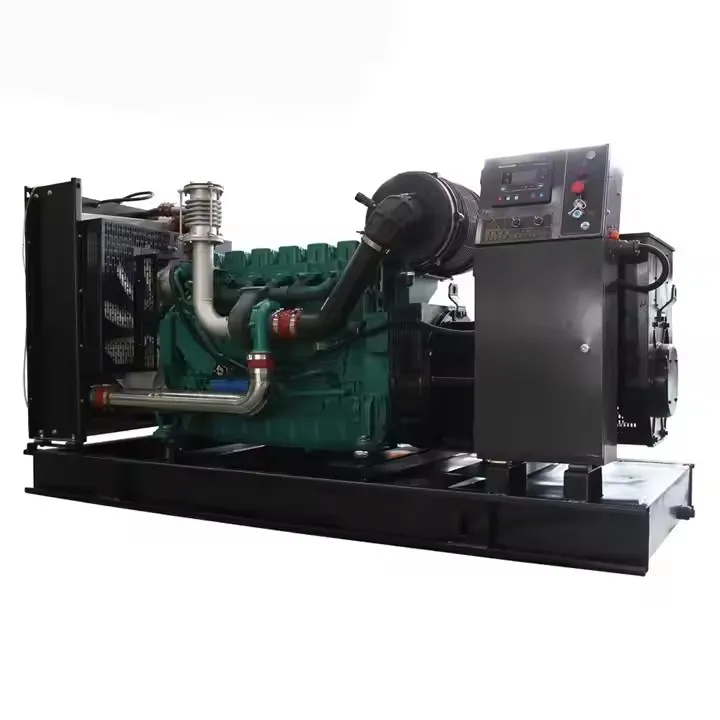

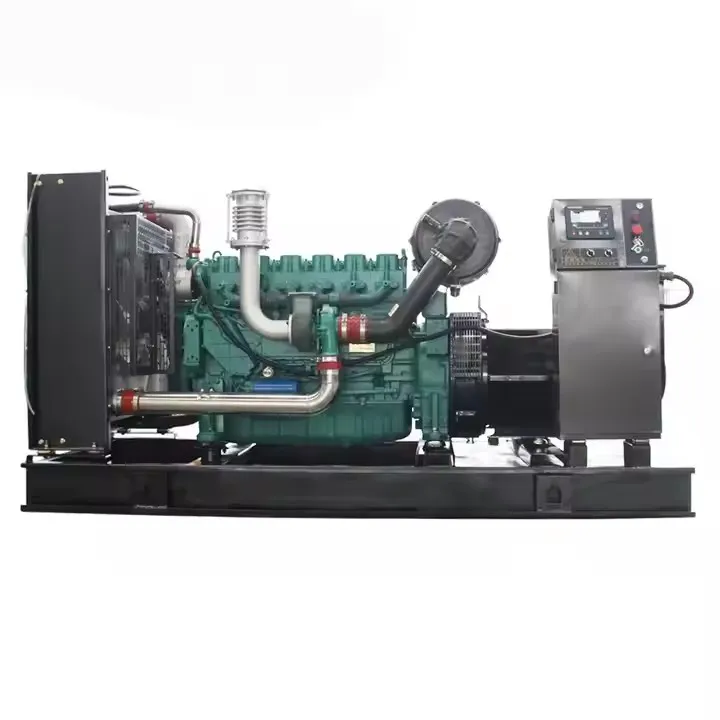

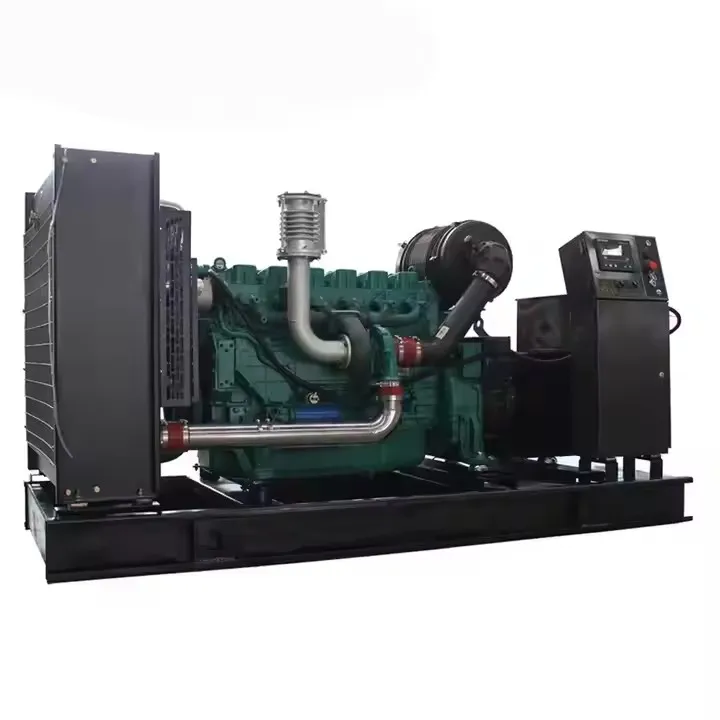

90kW 112.5kVA Weichai Diesel Generator Set

Diesel Generator Set Data

Model: WP-90GF

Prime power: 90KW/112.5KVA

Rated current: 162A

Rated frequency: 50Hz

Power factor: 0.8lag

Rated voltage: 230/400V

Transport package: plastic film/ plywood case

CONTACT US FOR MORE INFORMATION

Please complete the contact request on the right so we can ensure that we can deliver all the information you are looking for quickly. You will be contacted by the appropriate office in your area.

Support Hotline： 8613805366551

Send Inquiry Live Chat

Product Details
Why Choose Us
FAQs
Packing & Delivery

Diesel Generator Set Data
Manufacturer:	Winpower Generator Set Manufacturing Co.,Ltd Co.,Ltd
Set Type:	WP-90GF
Prime Power: Standby Power:	90KW/112.5KVA 99KW/123.8KVA
Rated Current:	162（A）
Rated Frequency:	50（Hz）
Start-up time:	5～6（s）
Power Factor:	0.8（Lag）
Rated Voltage:	400/230（V）
Standard Features
Engine: Weichai WP6D132E200 Radiator 40℃ Fans are driven by belt, with safety guard 24V charge alternator Dry type air filter, fuel filter, oil filter Alternator: single bearing alternator, IP22-IP23, insulation class H/H Main line circuit breaker Standard control panel Absorber Muffler Factory test report, User manual etc.
Diesel Engine Data
Manufacturer:		Weichai Power Co Ltd.
Model:		WP2.3D33E200
Prime/Standby Power:		120KW/132KW
Rated Speed:		1500（r/min）
Cycle:		4 stroke
Cylinder Arrangement:		6 cylinder, wet liner, in line
Displacement:		6.75L
Bore and Stroke:		105*130（mm）
Compression Ratio:		18:1
Governor Type:		Electrical / Mechanical speed governor
Start battery voltage:		24V DC Electrical Start
Air Intake System
Air Intake System:		Turbocharged
Min Intake Restriction:		100kpa
Exhaust System
Max. Exhaust Temperature:		650℃
Max Allowable Back Pressure:		8kpa
Fuel System
Fuel System:		Direct injection
100%( Prime Power) Load:		205g/kw.h
50%( Prime Power) Load:		199g/kw.h
Oil System
Total Oil Capacity:		18L
Oil Consumption ratio:		＜0.1%
Cooling System
Cooling Way:		Water-cooled
Total Coolant Capacity:		8L
Thermostat:		70-85℃
Max Water Temperature:		102℃
Alternator Data
Manufacturer:		STAMFORD/SIEMENS/MARATHON/ENGGA /LEROY SOMER
Excitation Mode:		Brushless and self- exciting
Number of phase and Access Act:		3-phase 4-wire
Connecting Type:		“Y” type connecting
Alternator Capacity:		112.5KVA
Alternator Efficiencies:		95％
Overload:		Oerload running 1 hour within 12 hours
Protection Level:		IP22-IP23
Insulation Class, Temperature Rise:		H/H
Telephone Influence Factor (TIF):		＜50
THF:		＜2%
Voltage Regulation, Steady State:		≤±1%
Altitude:		≤1000m
Genset Electrical Performance
Voltage Regulation:						≥±5%
Voltage Regulation, Stead State:						≤±1%
Sudden Voltage Warp (100% Sudden Reduce):						≤+25%
Sudden Voltage Warp (Sudden Increase):						≤-20%
Voltage Stable Time (100% Sudden Reduce):						≤6S
Voltage Stable Time (Sudden Increase):						≤6S
Frequency Regulation, Stead State:						≤5%
Frequency Waving:						≤1.5%
Sudden Frequency Warp (100% Sudden Reduce):						≤+12%
Sudden Frequency Warp (Sudden Increase):						≤-10%
Frequency Recovery Time(100%Sudden Reduce):						≤5S
Frequency Recovery Time(Sudden Increase):						≤5S
Options
Engine					Alternator
Heater					Anti Condensation Heater
Battery Charger					Permanent Magnet Generator（PMG）
Water Separator					Drop CT（For Paralleling）
Daily Fuel Tank
Fuel Level Sensor
Control System					Others
Remote Control Panel					Rainproof Type
Auto Transfer Switch (ATS)				Soundproof Type
Paralleling System				Trailer Type
Open Type
Overall Size			Weight
25508501800(mm)			1380(kg)

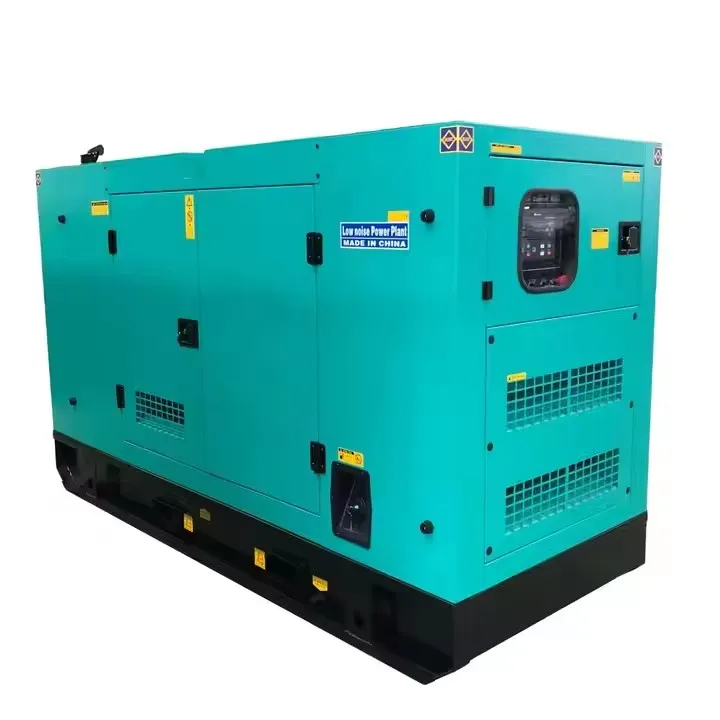

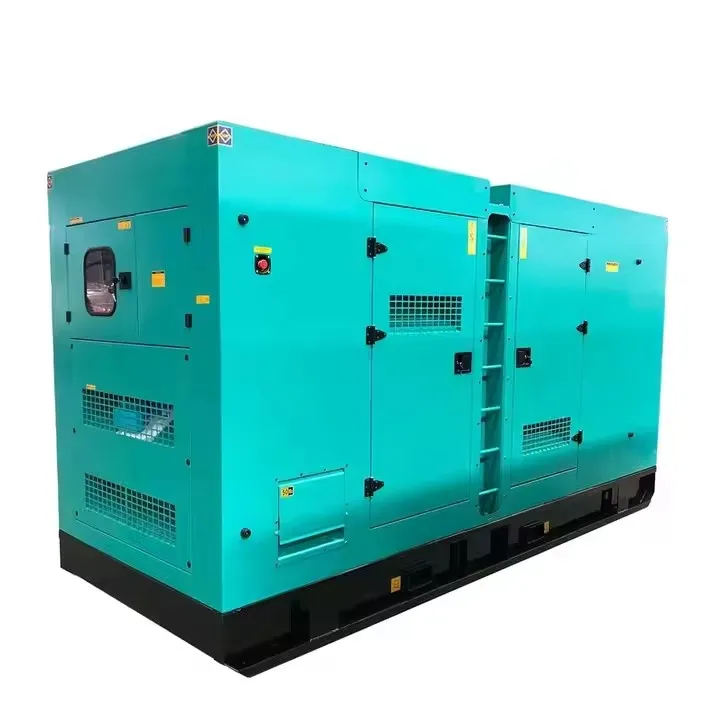

Soundproof Type
Overall Size			Weight
300012001450(mm)			2250(kg)

More technical information, please send inquiry to us.

We have dedicated the past 10 years to the research, development, and manufacturing of both diesel and natural gas generators. Our comprehensive product range encompasses power outputs from 20kW to 3000kW, available in Open, Silent, Mobile, Containerized, and Full-Automatic system configurations. We offer customized solutions featuring engines from renowned brands such as Cummins, Deutz, Perkins, Weichai, Volvo, MTU, Yuchai, Shangchai, and Leiteng Power.

Our state-of-the-art, dust-free facility spans 430,000 sq. ft. and houses 200 sets of production equipment across 9 production lines. We are ISO9001:2015 certified and have an annual production capacity of 20,000 units. Our team of highly-trained engineers and skilled employees is committed to delivering exceptional quality products and services. This dedication has earned us widespread praise from clients in over 40 countries and regions.

We sincerely hope to have the opportunity to establish a business relationship with you and build a long-term partnership. Please do not hesitate to contact us; we are always at your disposal!

FAQ

Q1: Are you a manufactory or trade company?

A1: We are the Manufactory specialized in diesel generator set industry for many years already, which passed IS09001:2015, AAA grade credit enterprise. Annual output 50,000 sets, products/service reach 40 countries and regions.

Q2: How to control quality?

A2: 1) All the raw materials/parts by IQC (Incoming Quality Control) before launch into the process.

2) Each process under control of IPQC (Input Process Quality Control).

3) Each generator set/part must be pass 100% inspection between process.

4) All-sided ex-factory testing in various condition (Outgoing Quality Control).

Q3. How about your price level?

A3: Our price is reasonable which is based on quality and cost.

And it’s negotiable which based on quality or exact demands. It’ll be much helpful if more details could be provide when you make an inquiry.

Q4: Delivery time?

A4: 7-15 days after deposit received.

Most of diesel generator sets/parts with stock, we can make delivery immediately or make out in short time.

Q5. How about MOQ?
