25kW 31kVA Weichai Diesel Generator Set

Name: 25kW 31kVA Weichai Diesel Generator Set
Brand: winning power
SKU: 114

Diesel Generator Set Data

Model: WP-25GF

Prime power: 25KW/31.25KVA

Rated current: 45A

Rated frequency: 50Hz

Power factor: 0.8lag

Rated voltage: 230/400V

Transport package: plastic film/ plywood case

CONTACT US FOR MORE INFORMATION

Please complete the contact request on the right so we can ensure that we can deliver all the information you are looking for quickly. You will be contacted by the appropriate office in your area.

Support Hotline： 8613805366551

Send Inquiry Live Chat

Product Details
Why Choose Us
FAQs
Packing & Delivery

Diesel Generator Set Data
Manufacturer:	Winpower Generator Set Manufacturing Co.,Ltd Co.,Ltd
Set Type:	WP-25GF
Prime Power: Standby Power:	25KW/31.25KVA 26KW/32.5KVA
Rated Current:	45（A）
Rated Frequency:	50（Hz）
Start-up time:	5～6（s）
Power Factor:	0.8（Lag）
Rated Voltage:	400/230（V）
Standard Features
Engine: Weichai WP2.3D33E200 Radiator 40℃ Fans are driven by belt, with safety guard 24V charge alternator Dry type air filter, fuel filter, oil filter Alternator: single bearing alternator, IP22-IP23, insulation class H/H Main line circuit breaker Standard control panel AbsorberMuffler Factory test report, User manual etc.
Diesel Engine Data
Manufacturer:		Weichai Power Yangzhou Diesel Engine Co Ltd.
Model:		WP2.3D33E200
Prime/Standby Power:		30KW/33KW
Rated Speed:		1500（r/min）
Cycle:		4 stroke
Cylinder Arrangement:		4 in line
Displacement:		2.289L
Bore and Stroke:		89*92（mm）
Compression Ratio:		17.5:1
Governor Type:		Mechanical speed governor
Start battery voltage:		12V DC Electrical Start
Air Intake System
Air Intake System:		Turbocharged
Min Intake Restriction:		100kpa
Exhaust System
Max. Exhaust Temperature:		650℃
Max Allowable Back Pressure:		8kpa
Fuel System
Fuel System:		Direct injection
100%( Prime Power) Load:		215g/kw.h
50%( Prime Power) Load:		199g/kw.h
Oil System
Total Oil Capacity:		8L
Oil Consumption ratio:		＜0.1%
Cooling System
Cooling Way:		Water-cooled
Total Coolant Capacity:		5L
Thermostat:		70-85℃
Max Water Temperature:		102℃
Alternator Data
Manufacturer:		STAMFORD/SIEMENS/MARATHON/ENGGA /LEROY SOMER
Excitation Mode:		Brushless and self- exciting
Number of phase and Access Act:		3-phase 4-wire
Connecting Type:		“Y” type connecting
Alternator Capacity:		31.25KVA
Alternator Efficiencies:		95％
Overload:		Oerload running 1 hour within 12 hours
Protection Level:		IP22-IP23
Insulation Class, Temperature Rise:		H/H
Telephone Influence Factor (TIF):		＜50
THF:		＜2%
Voltage Regulation, Steady State:		≤±1%
Altitude:		≤1000m
Genset Electrical Performance
Voltage Regulation:						≥±5%
Voltage Regulation, Stead State:						≤±1%
Sudden Voltage Warp (100% Sudden Reduce):						≤+25%
Sudden Voltage Warp (Sudden Increase):						≤-20%
Voltage Stable Time (100% Sudden Reduce):						≤6S
Voltage Stable Time (Sudden Increase):						≤6S
Frequency Regulation, Stead State:						≤5%
Frequency Waving:						≤1.5%
Sudden Frequency Warp (100% Sudden Reduce):						≤+12%
Sudden Frequency Warp (Sudden Increase):						≤-10%
Frequency Recovery Time(100%Sudden Reduce):						≤5S
Frequency Recovery Time(Sudden Increase):						≤5S
Options
Engine					Alternator
Heater					Anti Condensation Heater
Battery Charger					Permanent Magnet Generator（PMG）
Water Separator					Drop CT（For Paralleling）
Daily Fuel Tank
Fuel Level Sensor
Control System					Others
Remote Control Panel					Rainproof Type
Auto Transfer Switch (ATS)				Soundproof Type
Paralleling System				Trailer Type

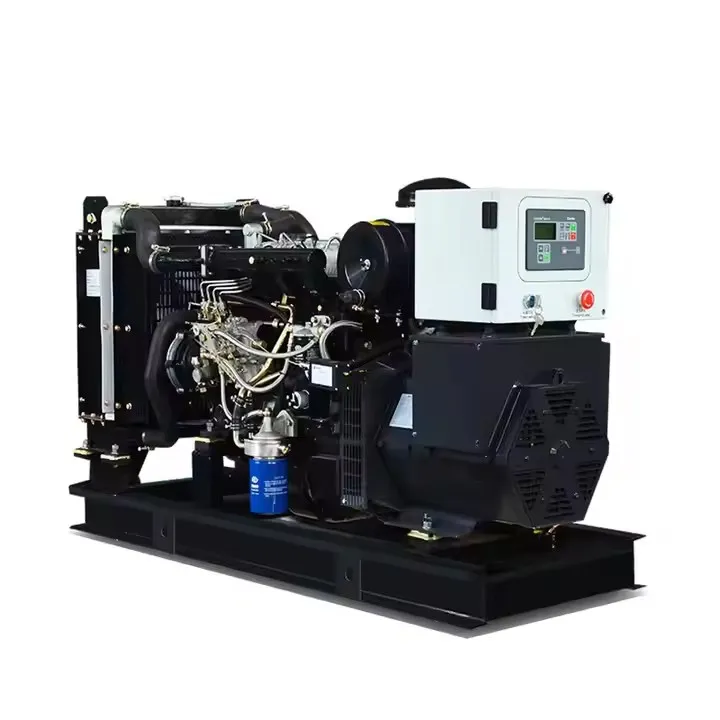

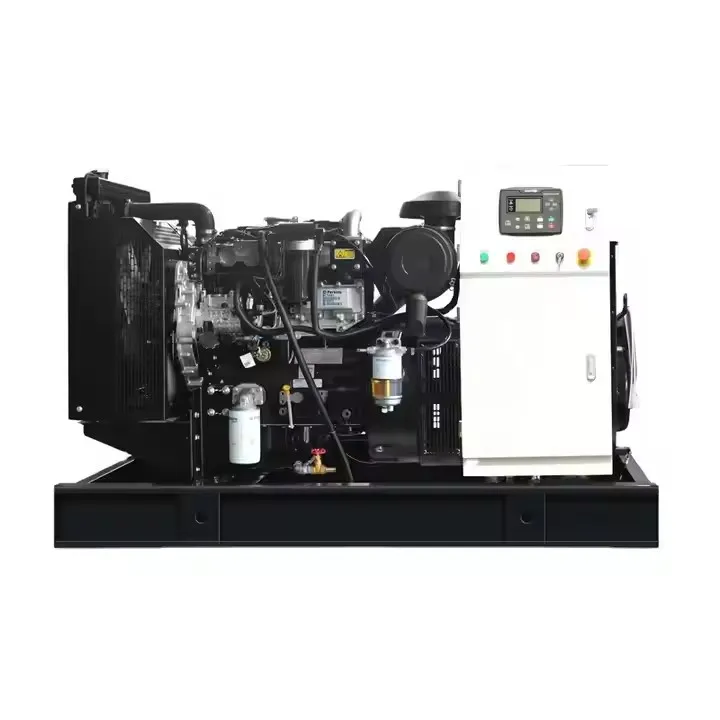

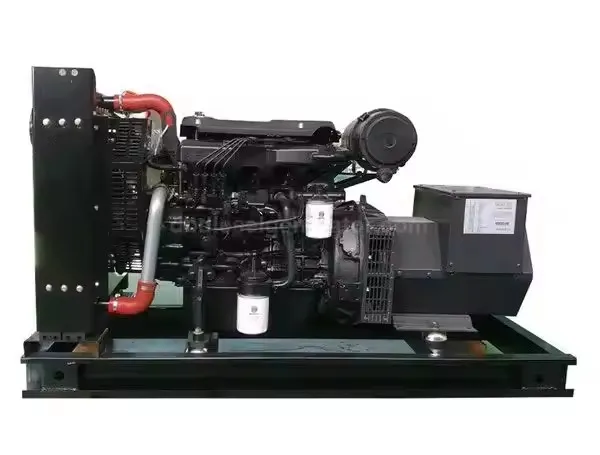

Open Type
Overall Size			Weight
17307501190(mm)			640(kg)

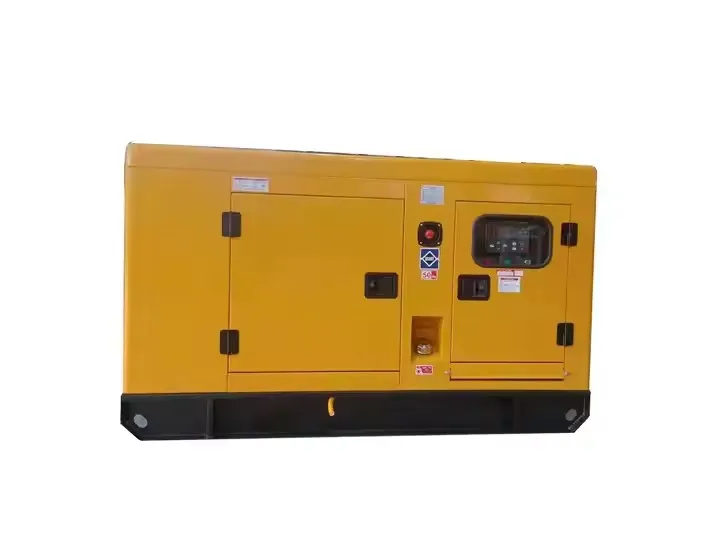

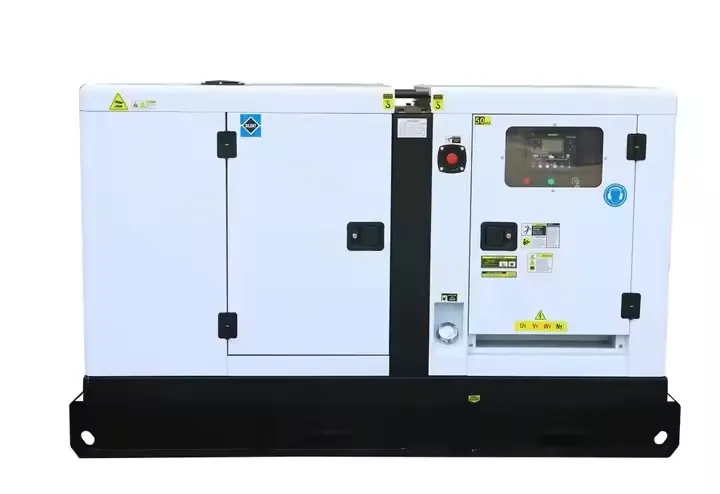

Soundproof Type
Overall Size			Weight
250011001450(mm)			1000(kg)

More technical information, please send inquiry to us.
