Genset Winpower
Configuration
1) Volvo engine
2) Shanghai Stamford alternator(Stamford, Leroysomer, Marathon, Siemens, ENGGA brand for option)
3) SmartGen 6110 control panel as standard, AMF Control Panel Deep Sea DSE7320, SmartGen HGM6120, cloud monitoring platform for option. ATS, synchronous parallel for option
4) Chint breaker as standard, ABB, Schneider Breaker for option
5) 8/12 Working hours base bottom fuel tank, external fuel tank for option
6) Anti-Vibration mounted system
7) Battery and battery connecting cable, battery charger
8) Industrial silencer and flexible exhaust hose

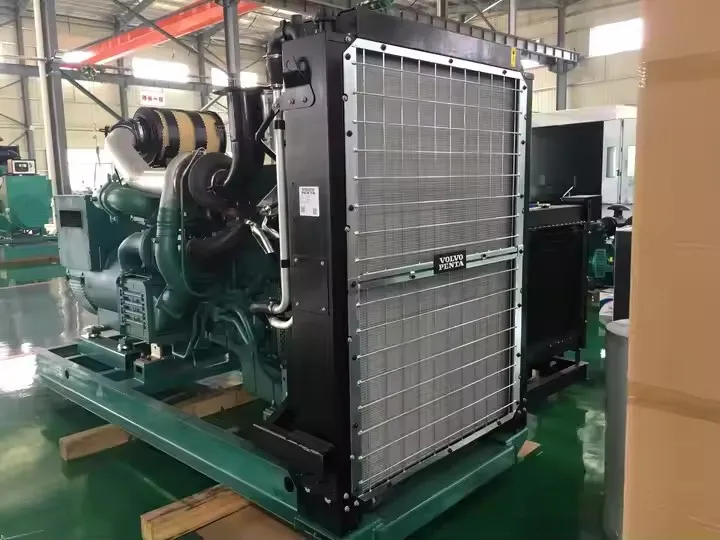

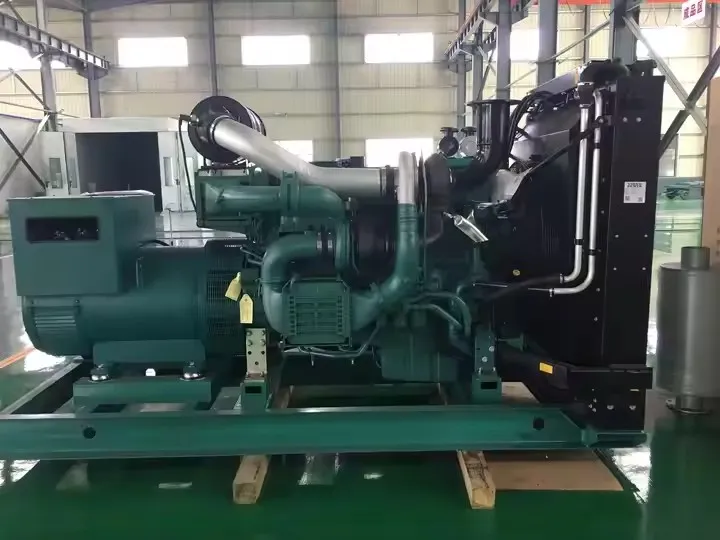

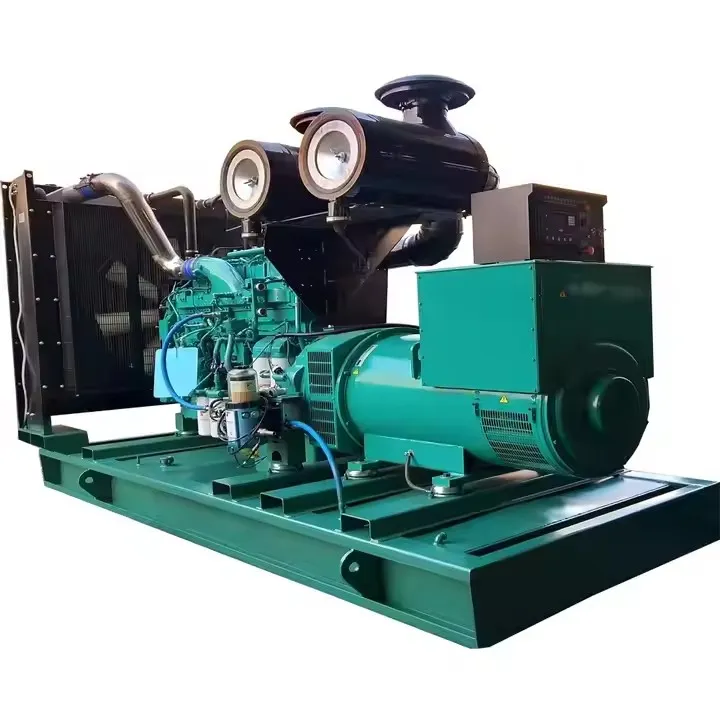

500kW Volvo Diesel Generator Set Technical Datasheet
| Manufacturer: | Winpower Generator Set Manufacturing Co.,Ltd> |
| Genset model | WP-500GF |
| Type | Open type or Silent type |
| Prime Power: | 500KW/625KVA |
| Standby Power: | 550KW/687.5KVA |
| Rated current: | 900A |
| Rated voltage: | 400/230V or as you required |
| Rated frequency/speed: | 1500rpm/50Hz |
| Power factor: | 0.8lag |
| Phase: | 3 phase 4 wire |
| Noise level: | 100dB at 7m ( open type generator) |
| 70dB at 7m(silent type generator) | |
| Dimension (L x W x H): | Open type: 3460×1400×2100mm(for reference) |
| Silent type: 4500 x 2000 x 2400mm(for reference) | |
| Net weight: | Open type: 3300kg |
| Silent type: 7200kg |
Volvo TWD1643GE Diesel Engine Datasheet
| Manufacturer: | Volvo Engine Co.,Ltd |
| Engine model | TWD1643GE |
| Prime power: | 560kW |
| Standby power: | 596kW |
| Frequency/Speed: | 1500RPM / 50Hz |
| Cylinders no. & Type: | 6, Vertical in-line, 4 stroke |
| Aspiration: | Turbocharged |
| Cooling method | Water-cooled |
| Displacement: | 16.12L |
| Compression ratio | 16.5:1 |
| Governor | Electronic |
| Bore x Stroke(mm): | 144 × 165 |
| Start mode: | Electric start |
| Starter motor: | 24V DC |
| Type Injection System: | Direct injection |
| Total Lubrication System Capacity | 48L |
| Max. oil temperature (°C) | 125 |
| Coolant Capacity (L) | 95 |
Alternator technical datasheet
| Manufacturer | Stamford/ Marathon/ Engga/ Shanghai Stamford/ Leroy Somer |
| Continuous rated power: | 500KW/625KVA |
| Rated Voltage: | 400/230V |
| Frequency/Speed: | 1500rpm /50Hz |
| Phase: | 3 phase 4 wire |
| Power Factor: | 0.8lag |
| Efficiency: | 94.7% |
| Regulator: | AVR |
| Stator: | Double layer concentric |
| Rotor: | Single/double bearing |
| Exciter type: | Brushless excitation |
| Windings: | 100% copper |
| Short circuit current capacity(%) | >300IN 10s( with PMG or Auxiliary winding） |
| Recovery time(Tr) | 1s |
| Waveform : TIF | <50 |
| Waveform : THD | <3% |
| Waveform : THF | <2% |
| Winding pitch | 2/3 |
| Voltage regulation: | ± 1.0 % |
| Protection: | IP22 or IP23 |
| Insulation class | H |
| Duty | Continuous |
| Number of poles | 4 |
| Altitude | ≤1000m |
| Rated power factor | 0.8lag |
| Stator winding | 6ends |
| Rotor | With damping cage |
| Overload | 110% rated load for 2 hour per 24 hour |
| Ambient temperature | 40℃ |
| Maximum overspeed | 2250 rpm 2minutes |
Controller
Standard controller
Model: Deep Sea 7320 or SmartGen 6110
Automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of single genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three remote (remote control, remote measurement and remote communication). The controller uses LCD display, optional language interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.
Auto parallel controller
Model: Deep Sea 8610 or SmartGen HGM9510
Synchronising & Load Sharing Control Module
The auto parallel controller represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the control module is packed with multiple features and benefits that are unrivalled across the generator control industry.
